3 roller miller

  • Product Item : YM-S260
  • Category: Three rollers miller
  • capacity:300-2000kg/h
  • Mould: as per your request
  • material: carbon steel
  • raw material: soap noodles
  • Product description:3 roller miller, three roller grinding machine, 3 roll miller, 3roll grinder, soap grinding machine, soap grinder
  • INQUIRY
https://youtu.be/E2AodUyMyXY

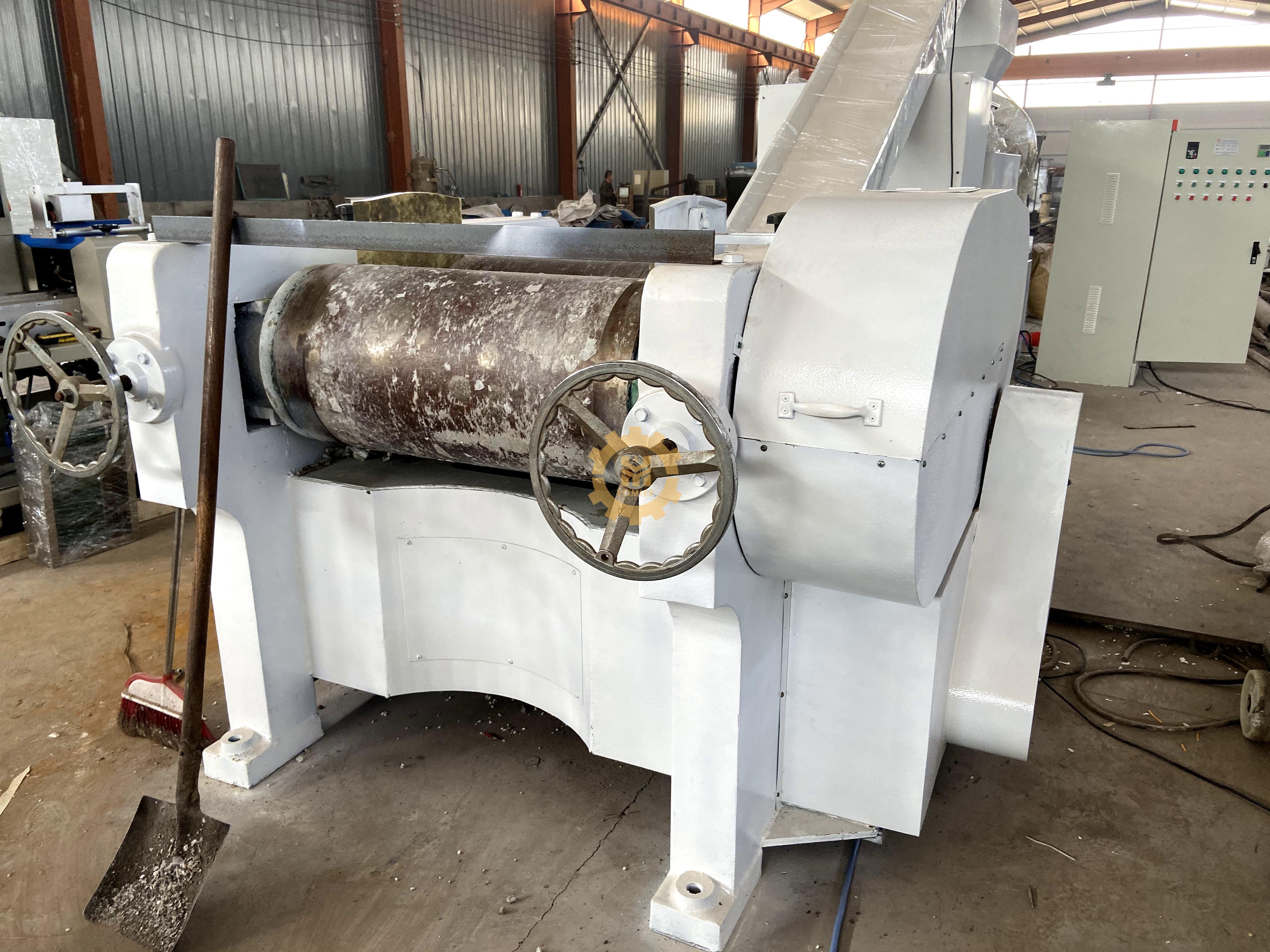

Product description of Three Roller Miller:

.★Three rollers in a horizontal direction grind materials twice by different speed, fineness of grind is 3-18um.
★The roller is made of high quality alloy, the circulating water in the roller lower the machine's temperature.
★It's used to mix soap noodle and other additives sufficiently, make the soap structure tight and improve soap's density and quality.
★The speed of the 3 rollers are slower/Middle/High, and the materials will adhere on the high speed roller,
★There is a scraper to scrape down the materials and cutting them into bars, then passing the bars to the conveyor belt.

Machine parameter of Three Roller Miller:

Type Capacity
(kg/h)
Motor power(Kw) Diameter of roller Length of the working face
YM-S260 500-1000 7.5 260mm 695mm

Different Capacity of three roller miller:

100-300kg/h, 300-800kg/h, 1000-2000kg/h and so on .
